Optical Ground Wire (OPGW) fiber optic cables have revolutionized how utility companies approach power transmission and communication.
Combining the functionality of a ground wire with the benefits of fiber optics, OPGW cables offer a robust power and data transmission solution.
This article ZMS cable explores the various aspects of OPGW fiber optic cables, including their model numbers, uses, installation, and benefits.
s
OPGW fiber optic cable, or Optical Ground Wire, is a type of cable designed to serve dual functions: it acts as a ground wire for power transmission lines and as a medium for transmitting data via optical fibers.
These cables are installed on the top of high-voltage transmission towers, providing lightning protection and data communication pathways simultaneously.

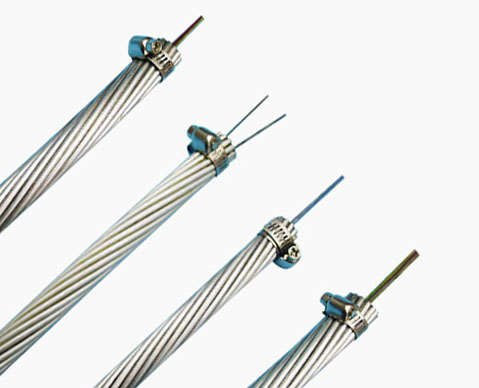

OPGW cables come in various models and specifications tailored to different requirements and environments. Here are some common models:
Aluminum Clad Steel (ACS) OPGW: This model uses aluminum-clad steel wires for strength and durability, with fibers housed in a central stainless-steel tube.
Aluminum Alloy OPGW: Incorporates aluminum alloy wires, offering a good balance of conductivity and mechanical strength.

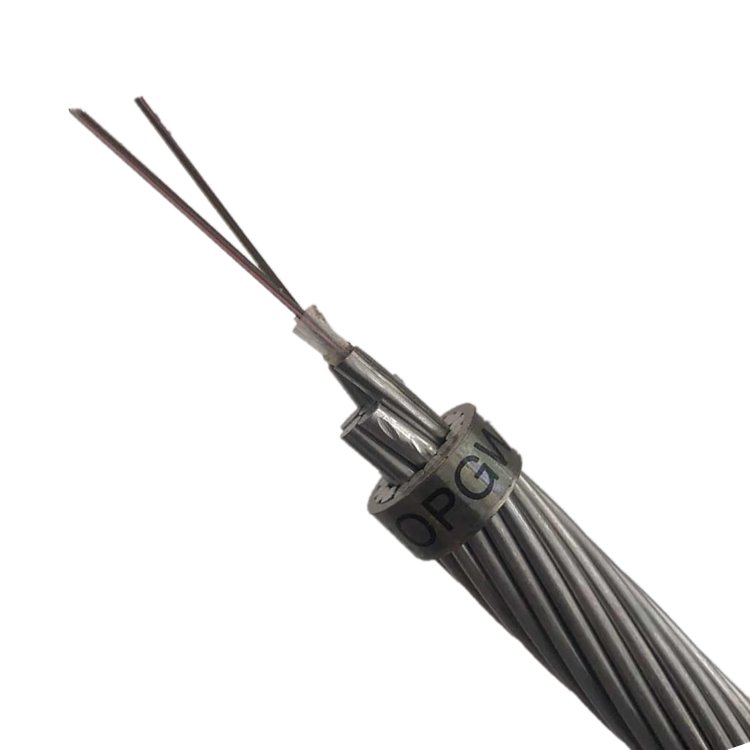

Stainless Steel Tube OPGW: Features a central stainless-steel tube containing optical fibers, surrounded by layers of aluminum-clad steel or aluminum alloy wires.
Example Model: OPGW-48B1-150
Fiber Count: 48
Fiber Type: Single-mode
Diameter: 150mm
Breaking Load: 110 kN
Short Circuit Current Capacity: 20 kA
Material: Aluminum Clad Steel with Stainless Steel Tube
One of the primary uses of OPGW cables is in power transmission. Installed at the top of high-voltage transmission towers, they serve as a ground wire, protecting the infrastructure from lightning strikes.
The robust construction of OPGW cables ensures they can withstand environmental stresses and electrical surges.
OPGW cables also facilitate data communication. The embedded optical fibers provide high-speed data transmission, making them ideal for use in utility networks.
They enable real-time monitoring and control of power grids, enhancing the reliability and efficiency of power distribution systems.
In smart grid applications, OPGW cables play a crucial role. They support advanced functionalities such as remote monitoring, fault detection, and automated control systems.
This integration of power and data networks helps utilities manage and optimize the performance of their grids.
OPGW cables are increasingly used in renewable energy projects like wind and solar farms. They connect remote power generation sites to the main grid, ensuring efficient power and data transmission.
This is vital for integrating renewable energy sources into the broader power network.
The installation of OPGW cables requires careful planning and execution. Here is an overview of the process:
Pre-Installation Survey: Surveying to assess the site conditions, including tower heights, span lengths, and environmental factors.
Design and Planning: Designing the OPGW cable layout based on the survey results, considering factors like tension, sag, and vibration.
Stringing the Cable: Using specialized equipment to string the OPGW cable along the transmission towers. This step requires precision to maintain the proper tension and avoid damage to the cable.
Jointing and Termination: Connecting and terminating the cable sections at the desired points, ensuring secure and reliable connections.
Testing and Commissioning: Conducting tests to verify the integrity and performance of the cable installation. This includes testing the optical fibers for signal loss and checking the grounding functionality.
Maintaining OPGW cables is essential to ensure their longevity and performance. Routine inspections and monitoring are conducted to detect any issues such as fiber breakage, sheath damage, or corrosion.
Regular maintenance activities include:
Visual Inspections: Checking for physical damage, corrosion, or signs of wear and tear.
Fiber Testing: Performing optical time-domain reflectometer (OTDR) tests to assess the condition of the fibers and detect any faults.
Environmental Monitoring: Keeping track of environmental conditions such as temperature, humidity, and pollution levels that might affect the cable.
Repair and Replacement: Addressing any issues promptly by repairing or replacing damaged sections of the cable.
The most significant advantage of OPGW cables is their dual functionality. By serving as both a ground wire and a data transmission medium, they reduce the need for separate installations, saving time and costs.
OPGW cables are designed to withstand harsh environmental conditions, including extreme temperatures, high winds, and lightning strikes. Their robust construction ensures high reliability and long service life.
Enhanced Communication
OPGW cables provide high-speed, high-capacity communication channels with optical fibers embedded within them. This capability is crucial for modern utility networks requiring real-time monitoring and control of data.
The integration of data and power transmission allows for better grid management. Utilities can monitor the performance of their networks in real time, quickly detect and respond to faults, and optimize the flow of electricity.
By combining the functions of ground wires and communication cables, OPGW cables offer a cost-effective solution.
They reduce the need for separate communication infrastructure, leading to significant savings in installation and maintenance costs.
OPGW cables support advanced technologies and are scalable to meet future demands. As power grids evolve and data requirements increase, OPGW cables can accommodate new applications and higher data rates.
Challenges and Considerations
The installation of OPGW cables is a complex process that requires specialized equipment and expertise. Proper planning and execution are critical to avoid issues such as improper tensioning or cable damage.
While OPGW cables offer long-term cost savings, the initial investment can be higher compared to traditional ground wires or separate communication cables. However, the benefits often outweigh the initial costs over time.
Regular maintenance is essential to ensure the performance and longevity of OPGW cables. This includes routine inspections, fiber testing, and addressing any environmental factors that could impact the cable.
The installation and maintenance of OPGW cables can have environmental impacts, such as disruption to local wildlife and habitats. It is important to conduct environmental assessments and implement measures to minimize these effects.
OPGW fiber optic cables represent a significant advancement in power transmission and communication. Their dual functionality, high reliability, and capacity for data transmission make them an invaluable asset for modern utility networks.
By understanding the various models, uses, and installation processes, utility companies can leverage the benefits of OPGW cables to enhance their operations and prepare for future challenges.
Whether it's for traditional power grids, smart grid applications, or renewable energy projects, OPGW cables offer a versatile and cost-effective solution.
With proper installation and maintenance, they can provide reliable performance and support the evolving needs of the energy sector.
