Spiral Steel Tube Armored Cable Vibration is designed for micro vibration design of a sensor cable, optical fiber sensing system with double layer stainless steel sheathed sheath protection, high performance of tensile, compressive, torsional, rat bite, cutting, waterproof, soft tenacity and other characteristics, suitable for all kinds of bad environment.
ZMS produces fiber optic cables with a well-defined structure, protected in a steel tube inside, in a free state, the micro-vibration is very sensitive to the outside world and is ideal for distributed vibration sensor detecting units, widely used in airports, power plants, the chemical industry, military, boundary, prison, oil pipelines, communication cable, power cable, railway, highway, community, villas, schools, mines, big small and medium-sized factories, enterprises and institutions, and all kinds of key areas such as intrusion and failure prevention.

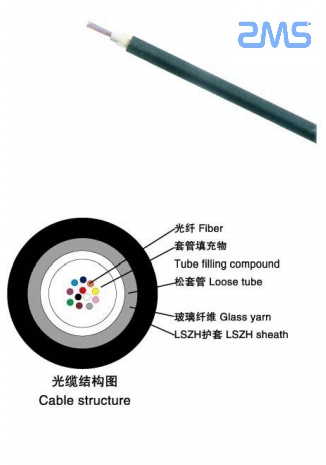

Characteristics
Good mechanical and temperature performance
High-strength loose tube that is hydrolysis-resistant
Glass yam strength members ensure tensile strength
Crush resistance and flexibility
Standards
Comply with standard YD/T 1258.4-2005、ICEA-596、GR-409、IEC 332-1 and IEC 332-3C.
Transport/Storage/Operating Tempeature:-20°℃~+60°℃
Installation Temperature:-5C~+50℃

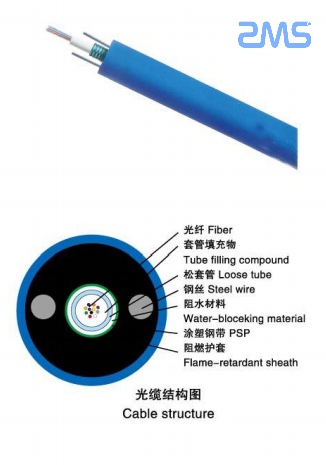

The 250μm fibers are positioned in a loose tube of high-modulus plastic. The tubes are filled with a water-resistant filling compound.
The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight.
Two parallel steel wires are placed on the two sides of the steel tape. The cable is completed with a flame-retardant sheath—application: Duct/Aerial/Direct buried.
Characteristics
Good mechanical and temperature performance
High-strength loose tube that is hydrolysis-resistant
Special tube-filling compounds ensure the critical protection of fiber
Special sheath material ensures excellent flame-retardant performance
PSP enhancing moisture-proof
Two parallel steel wires ensure tensile strength
Small diameter, lightweight, and friendly installation
Long delivery length
Standards
Comply with Standard Q62170406-MG001-2011 as well as MT386-2011; and passes MA certification.

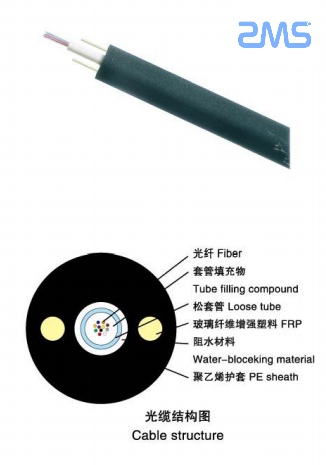

The 250μm fibers are positioned in a loose tube of high-modulus plastic. The tubes are filled with a water-resistant filling compound.
Over the tube,water-blocking material is applied to keep the cable watertight. Two parallel Fiber Reinforced Plastics(FRP) are placed on the sides. The cable is completed with a polyethylene (PE) sheath.
Characteristics
Good mechanical and temperature performance
High-strength loose tube that is hydrolysis-resistant
Special tube-filling compounds ensure the critical protection of fiber
Two parallel FRPs ensure tensile strength
PE sheath protects cable from ultraviolet radiation
Small diameter, lightweight, and friendly installation
Long delivery length
Standards
Complies with standard YD/T 769-2010.
Storage/Operating Tempeature:-40°C to +70°C

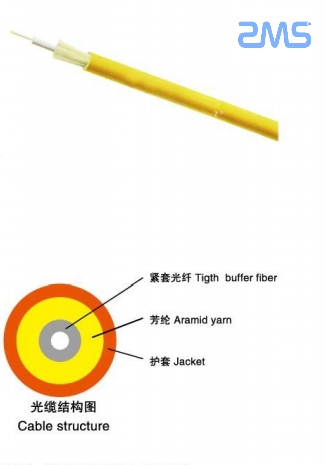

SXC Simplex Cable uses a single 900μm or 600 μm flame-retardant tight buffer fiber as an optical communication medium, the tight buffer fiber is wrapped with a layer of aramid yam as strength member units, and the cable is completed with a PVC or LSZH (LOW Smoke, Zero Halogen, Flame-Retardant)jacket.
Characteristics
Tight buffer fiber ease of stripping
Tight buffer fiber has excellent flame-retardant performance
Aramid yarn as a strength member makes cable have excellent tensile strength
The jacket is anti-corrosion,anti-water,anti-ultraviolet radiation, flame-retardant, harmless to the environment, etc.
Applications
Optical fiber jumper or pigtail
Indoor riser level and plenum level cable distribution
Interconnect between instruments, communication equipment
Standards
Comply with standard YD/T 1258.2-2003、ICEA-596、GR-409、IEC 60794-2-10/11, etc; and meet the requirements of UL approval for OFNR and OFNP
The optical fiber unit is positioned in the center. Two parallel Fiber Reinforced Plastics (FRP) are placed on the sides. Then, the cable is completed with a black or color LSZH sheath.
Characteristics
Special Low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission properties
Two parallel FRP/strength members ensure good performance of crush resistance to protect the fiber
Simple structure, lightweight, and high practicability
Novel flute design, easily strip, and splice, simplify the installation and maintenance
Low smoke, zero halogen, and flame retardant sheath
APL moisture barrier, PSP enhancing moisture-proof
Storage/Operating Tempeature:-20°C to +60°C
| Cable Type | Fiber Count | Cable Diameter mm | Unitube Diameter mm | Cable Weight Kg/km | Tensile Strength Long/Short term N | Crsh Resistance Long/Shorrt tem N/100mm | Bending Radius Static/Dynamic mm |
| ABC-I-02~12 | 02~12 | 6.8±0.5 | 3 | 55.5 | 400/1000 | 300/1000 | 10D/20D |
| BC-1-14-24 | 14~24 | 7.8±0.5 | 4 | 67 | 400/1000 | 300/1000 | 10D/20D |
| Cable Type (Increased by 2 fibers) | Fiber Count | Cable Diameter mm | Cable Weight Kg/km | Tensile Strength Long/Short term N | Crush Resistance Long/Short term N/100mm | Bending Radius Static/Dynamic mm |
| MGXTSV-2-12 | 2~12 | 10.6 | 152 | 600/1500 | 300/1000 | 10D/20D |
| MGXTSV-2~12 | 2~12 | 11 | 172 | 1000/3000 | 1000/3000 | 10D/20D |
| MGXTSV-14~24 | 14~24 | 13 | 215 | 1000/3000 | 1000/3000 | 10D/20D |
| MGXTSV-26~36 | 26-36 | 14.6 | 272 | 1000/3000 | 1000/3000 | 10D/20D |
| GXTSV-38-48 | 38-48 | 15.6 | 306 | 1000/3000 | 1000/3000 | 10D/20D |
| Cable Type (Increased by 2 fibers) | Fiber Count | Cable Diameter mm | Cable Weight Kg/km | Tensile Strength/Long/Short term N | Crush Resistance/Long/Short term N/100mm | Bending Radius/Static/Dynamic mm |
| GYFXY-2~12 | 2~12 | 8.2 | 81 | 400/1000 | 300/1000 | 10D/20D |
| Cable Code | Cable Diameter/mm | Cable Weight/kg/km | Fiber diameter of the ferrule | Tensile Strength Long/Short term/N | Crush Resistance/Long/Short term N/100mm | Tensile Strength Crush/Dynamic/Static/mm | |
| φ2.0±0.2 | PVC Jacket | LSZH Jacket | |||||
| GJFJV | φ2.8±0.2 | 6 | 7.5 | 900±50 | 80/150 | 100/500 | 50/30 |
| φ3.0±0.2 | |||||||
| Cable Code | Fiber Count | Cable Size/mm | Cable Weight/Kg/km | Tensile Strength Long/Short term N | Crush Resistance Long/Short term 100mm | Bending Radius Static/Dynamic mm |
| GJXFHA-1 | 7 | 47 | 30/60 | 300/1000 | 15/30 | |
| GJXFHA-2 | 2 | 7 | 47 | 30/60 | 300/1000 | 15/30 |
