Cu (AL) /XLPE / Copper Tape Screen / SWA (STA) / PVC Power Cable (3 CORE) | Cu (AL) / XLPE / Copper Wire+Copper Tape Screen / AWA (ATA) (1 CORE) / PVC Power Cable
Single Core / Three-Cores XLPE PVC insulated power cable can be arranged according to GB standard, Internation IEC standard, American ASTM standard, British BS standard, etc.

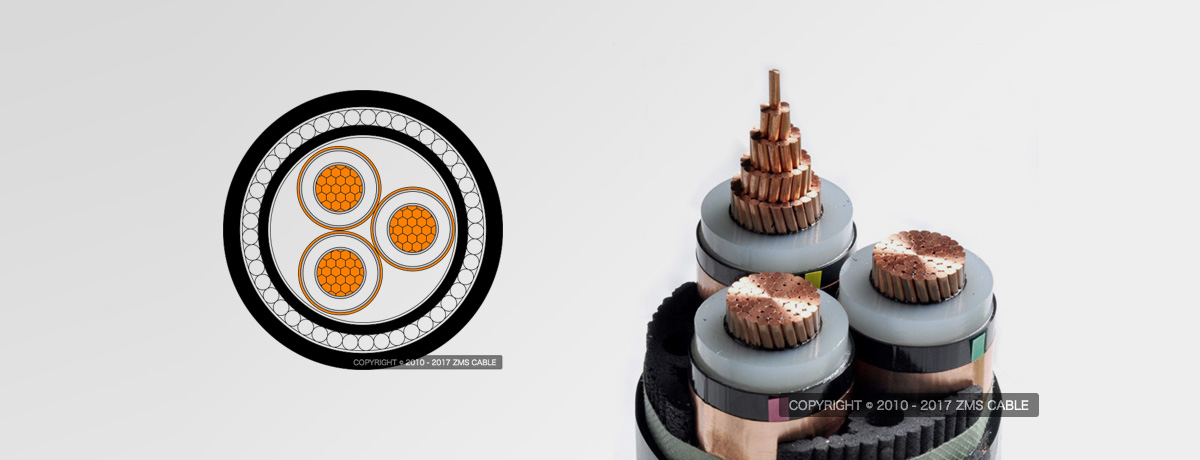

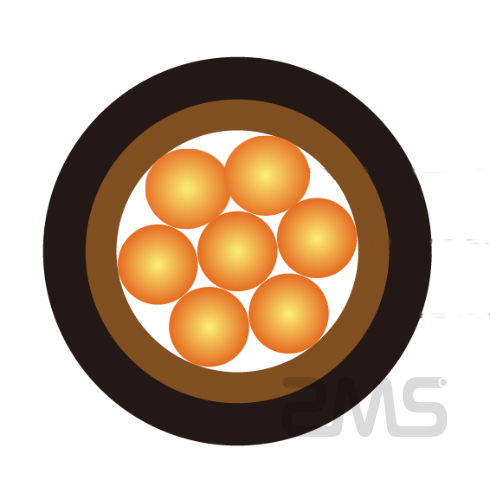

XLPE Cable With Copper Wire Screen
Integrated intelligent high voltage XLPE cable can online monitor the operation parameters during the operation of high voltage cable.
It can online real-time monitor the cable's actual operating temperature online and then realize online temperature measurement and control, online fault location, and improve the operation load of the cable system.
Besides, it also can accomplish online monitoring of partial discharge, current carrying capacity, and outer sheath condition.
It can provide important specification judging evidence for cable safety operation and more load operation, ensure the cable safety operation, extend cable service life, develop the cable transmission capability to the deepest extent, reduce the operation cost, meet the requirement of customers, safety, and economy.
It decreases the replacement frequency, reaches energy saving and consumption reduction, increases utilization of transmission energy, and achieves the best effect of the transmission performance of XLPE cable.
XLPE PVC Insulated Power Cable of ZMS has great economic benefit and social benefits.
Medium voltage cables for distribution networks; also for connection to generation units and plant and process connection.
To be laid directly in the ground, outdoors, indoors, and in cable ducts.
DIN VDE 0276-620, HD 620 S1, DIN/BS EN 60228,BS EN / IEC 60332-1-2
Rated voltage: Uo/U:3.6/6kV, 6/10kV (11kV), 12/20kV (24kV), 19/33kV, 26/35kV (35kV).
No. of core: Single core or three cores.
The highest allowed operating temperature of the conductor for long-term working is 90℃. In short-circuit (Max. long-term is no more than 5 seconds). The highest temperature for a conductor is no more than 250oC.
D.C. resistance of the conductor complies with the stipulations of 12/20kV (24kV).
The environment temperature should be no lower than 0℃ when lay. Otherwise, it should be preheated.
The PVC insulated cable is laid without a horizontal drop limit.
Working Frequency Voltage Test: 3.5Uo/5min without puncture.
Partial Discharge Test: The discharge volume should be no more than 10pC under 1.73Uo for the cable.
Minimum Bending Radius
Single core - Fixed: 15x overall diameter
3 core - Fixed: 12x overall diameter
(Single core 12x overall diameter and 3 core 10x overall diameter where bands are positioned adjacent to joint or terminations provided that the bending is carefully controlled by the use of a former)
XLPE concentric cable manufactured by ZMSCABLE is often used as an energy supply cable. It is most commonly used in power distribution, panels, and street lighting.
Conductor: Aluminum / Copper Conductor
Insulation: XLPE Insulation
Core: Single / Two / Three / Four core
Cable Inner Sheath: PVC
Concentric Conductor Layer: Copper / Aluminum
Cable Tape: Non-absorbent Material or OEM
Cable Outer Sheath: XLPE / PVC / PE
Shielded flexible cables are part of our extensive inventory of control cables. Its flexibility can be found in many industries such as manufacturing, construction, power, and distribution.
Conductor: Copper Conductor
Insulation: PVC
Core: Single / Medium core
Cable Inner Sheath: PVC
Screen: Copper (Plastic) Or Aluminum (Plastic) Composite Tape, Copper Wire Braided
Cable Outer Sheath: PVC
Polyethylene (PE) is a very good insulating material. It has excellent dielectric properties, high dielectric strength, low dielectric constant, and low dissipation factor at all frequencies.
Our PE insulated power cable is suitable for applications including telephone and high-speed transmission, high-frequency signal and control cables, low, medium, and high voltage power cables, overhead lines, and service cables.
Model: Solar power cable
Conductor: Flexible stranded tinned copper conductor
Insulation: PE / XLPE
Sheath: XLPE / PVC / Customized
If you don’t know how to choose the products you need or don’t find the cable type and size you need on this page, don’t worry.
Contact us and send us your requirements, and we can help you choose the right cable. You can provide us with the following information: cable voltage, conductor material, insulation and sheath material, shield type, armor type, etc.
Or you can provide us with cable installation environment, application requirements, etc. We will serve you wholeheartedly.
ZMS Cable Supplier has a number of quality certifications: ISO 9000, ISO 9001, ISO14000, ISO14001, ISO18000, CE, IEC, BS, NFC, ASTM, DIN, etc.
ZMS cable packaging is provided in the form of wooden reels, corrugated boxes, and coils.
The cable ends are sealed with BOPP self-adhesive tape and a non-hygroscopic sealing cap to protect the cable ends from moisture. We can print the required marks on the outside of the barrel with waterproof material according to customer requirements.

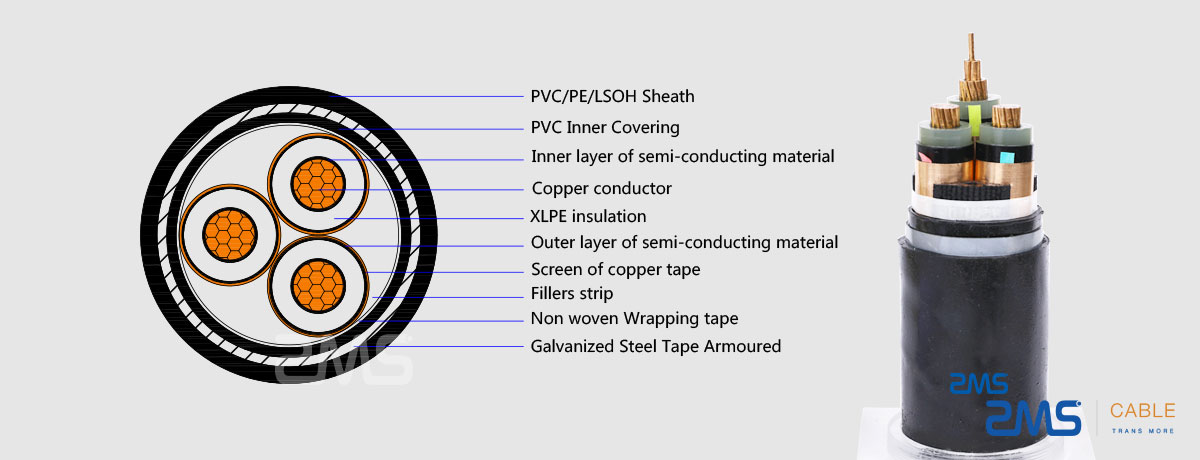

| Conductor | Class 2 Stranded Copper or Aluminum Conductors for Single Core and three-Core Cables |
| Inner Semi-Conductive Layer | Semi-conductive material |
| Insulation Halogen Free | XLPE (Cross-Linked Polyethylene) |
| Outer Semi-Conductive Layer | Semi-conductive material |
| Insulation Screen | Semi-conductive XLPE (Cross-Linked Polyethylene) |
| Screen | Copper wires or Copper tape |
| Armour | Single core: AWA (Aluminium Wire Armoured) Multi-core: SWA (Steel Wire Armoured) |
| Sheath | PVC (Polyvinyl Chloride) |
| Temperature Rating | Fixed: -20°C to +70°C Flexed: -5°C to +70°C |
| Short Circuit Temperature | +250°C |
| Minimum Bending Radius | 15x overall diameter |
