Application:

3 Core Aluminium Concentric Cable is suitable for sub-distribution and is particularly used within high-rise buildings and street lighting systems. These cables offer high resistance to aging, abrasion, moisture, chemicals, oils, and acids and afford protection of phase conductors against external ingress.

Standard:

NTP IEC 60502-1

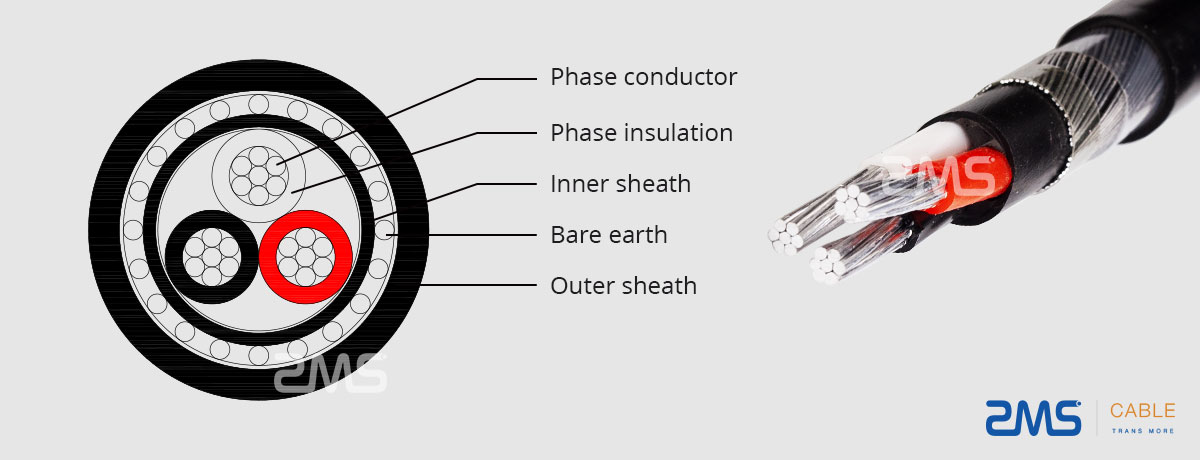

Construction:

1. Conductor: aluminum class 2

2. Insulation: LV-XLPE

3. Inner Sheath: Extrude PVC

4. Outer Sheath: XLPE/PE/PVC

Phase Color Code(SNE): Red, Black & White

Phase Color Code (CNE): Balck

Advantages:

1. 100 IEC, ISO Standard Product. Factory direct sale

2. Fast delivery.

3. 18-month guarantee period.

4. Sample free available.

Technical Data:

Cable Size	Conductor size (AAC)	Insulation thickness (XLPE)	Concentric conductor (AAAC 8000)	Outer sheath thickness (PVC)	Overall Diameter	Cable Mass
mm2	N/mm	mm	N/mm	mm	mm	kg/km
3*10/10	7/1.35	0.7	51/0.50	1.6	18.7	355.4
3*16/16	7/1.70	0.7	56/0.60	1.6	21.2	465.7

Concentric Cable
