An instrument cable is suitable for instruments and other electrical equipment in the signal transmission and control circuit.
The unarmoured are generally used for indoor installation and are suitable for wet and damp areas. Generally used within industrial process manufacturing plants for communication, data, and voice transmission signals and services, Also used for the interconnection of electrical equipment and instruments, typically in the petroleum industry.
IEC 60502, BS 5308, GB 9330

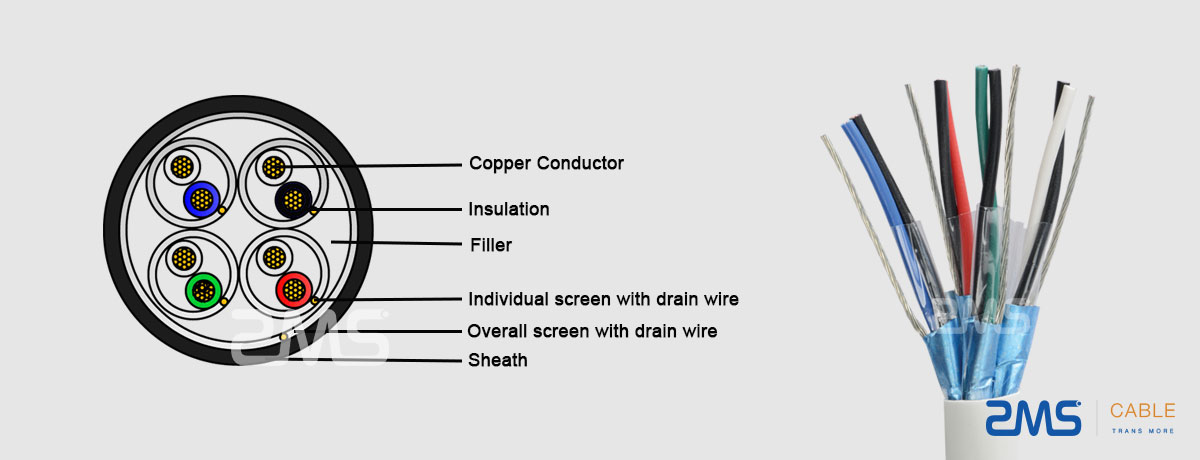

Conductor: copper
Insulation: PVC, XLPE, PE
Sheath: PVC Sheath
If you don’t know how to choose the products you need or don’t find the cable type and size you need on this page, don’t worry. Contact us and send us your requirements, and we can help you choose the right cable.
You can provide us with the following information: cable voltage, conductor material, insulation and sheath material, shield type, armor type, etc. Or you can provide us with cable installation environment, application requirements, etc.
We will serve you wholeheartedly. ZMS Cable Supplier has a number of quality certifications: ISO 9000, ISO 9001, ISO14000, ISO14001, ISO18000, CE, IEC, BS, NFC, ASTM, DIN, etc.
| Conductor | Annealed or tinned copper, sizes: 0.5mm2 and 0.75mm2 mulitistranded(Class 5), |
| 0.5 mm2, 1.0 mm2 solid(Class 1), 1.5mm2 or 2.5mm2, multistranded(Class 2) to-BS6360 | |
| Insulation | PE (Polyethylene) type 03 to BS6234 |
| Pairing | Two or three insulated conductors uniformly twisted together with a lay not exceeding?100mm |
| Colour code | See technical information |
| Binder tape | PETP transparent tape |
| Outer sheath | PVC Sheath, type TM 1 or type 6 to BS 6746 |
| Sheath color | Black or blue |
