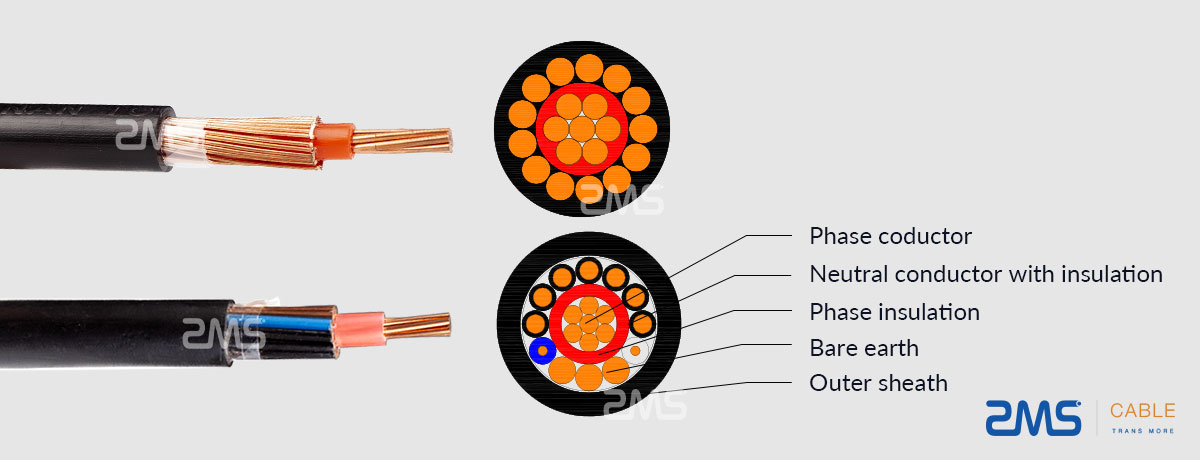

Used for house connections. This airdac cable can only be used for single-phase supply. The cable is made to be suspended in the air. Airdac Concentric Cable is available as a Combined Neutral and Earth (CNE) and Separate Neutral and Earth (SNE) with coms wire available in Separate Neutral and Earth (SNE).
SANS 1507-6
Conductor: copper class 2 or aluminum
Insulation: LV-XLPE
Sheath: XLPE/PE/PVC
Phase Color Code(SNE): Red, Black & Bare Copper
Phase Color Code (CNE): Red & Bare Copper
Application: Used for house connections, with or without coms wire.
1. Factory direct sale
2. Cable manufacturer, ISO, CE
3. Abundant experiences, high quality, and cheap price
4. Free cable sample
Airdac cables have been used by most municipalities, contractors, and Eskom to provide nationwide electricity supply to households and rural housing projects using conventional and split prepaid meters.
If you don’t know how to choose the products you need or don’t find the cable type and size you need on this page, don’t worry. Contact us and send us your requirements, and we can help you choose the right cable. You can provide us with the following information: cable voltage, conductor material, insulation and sheath material, shield type, armor type, etc. Or you can provide us with cable installation environment, application requirements, etc. We will serve you wholeheartedly. ZMS Cable Supplier has a number of quality certifications: ISO 9000, ISO 9001, ISO14000, ISO14001, ISO18000, CE, IEC, BS, NFC, ASTM, DIN, etc.
ZMS cable products are manufactured according to GB, IEC, BS, NFC, ASTM, DIN, and other international standards. Our technical team can customize cable products that meet your requirements according to your need. And we have reasonable airdac cable price for your reference.
ZMS provides free professional consulting services to provide you with one-stop project solution services and rapid product delivery solutions.
While ZMS provides high-quality cables, we also provide good delivery solutions. While ensuring the safe delivery of products, we provide the best packaging and transportation solutions, greatly reducing customers’ transportation costs.
ZMS cable packaging is provided in the form of wooden reels, corrugated boxes, and coils. The cable ends are sealed with BOPP self-adhesive tape and a non-hygroscopic sealing cap to protect the cable ends from moisture. We can print the required marks on the outside of the barrel with waterproof material according to customer requirements.
Cable | Neutral | Earth | Pilot | Overall | Cable | Current | Phase Core |
mm2 | mm2 | mm2 | mm | mm | kg/m | amps | ohms/km |
10 | 10 | 7.5 | 2 x 0.5 | 12.8 | 0.32 | 90 | 2.34 |
16 | 16 | 10 | 2 x 0.5 | 14.5 | 0.485 | 125 | 1.47 |
Cable | Earth | Overall | Cable | Current | Phase Core |
mm2 | mm2 | mm | kg/m | amps | ohms/km |
4 | 4 | 8.7 | 0.121 | 47 | 5.88 |
10 | 10 | 11 | 0.249 | 86 |
2.34 |
