Application:

The round concentric cable 600/1000V is used as an electric service from the power distribution, to transmit the power to the business center, residential and rural areas.

Standard:

ASTM-B; ASTM-D; UL

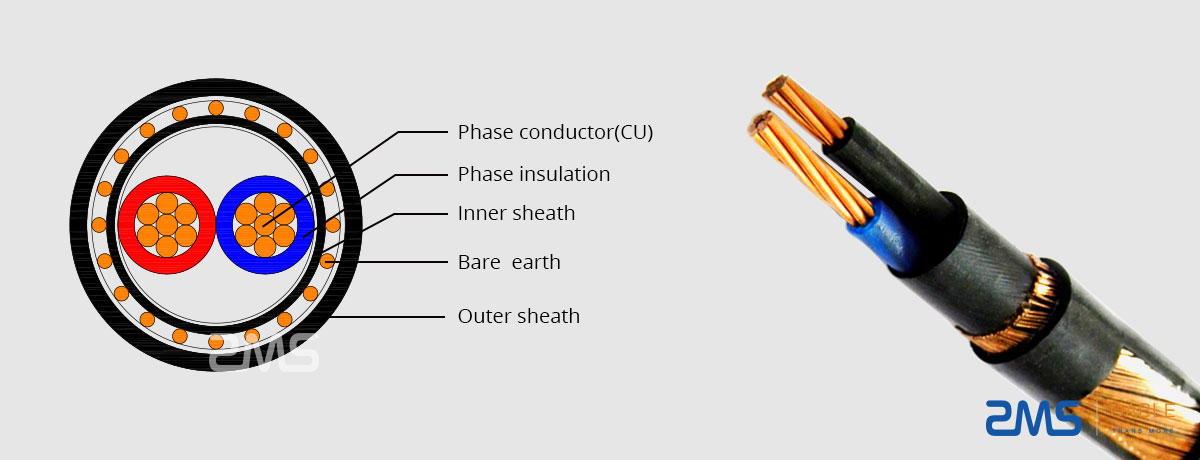

Construction:

1. Conductor: Copper class 2

2. Insulation: XLPE

3. Cable Inner Sheath: PVC

4. Concentric Conductor Layer: Copper

5. Cable Tape: Non-absorbent material or OEM

6. Cable Outer Sheath: XLPE/PVC/PE

Advantages:

1. Factory direct sale

2. Abundant experiences, good quality, and cheap price

3. Free sample

Why Choose ZMS Cable?

ZMS Cable Group has a wide product scope, including Power cables up to 500kV, AAC, AAAC, ACSR conductors, ABC overhead cable, electric wires, control cable, instrument cable, telecommunications cable, and Stay wires.

With advanced manufacturing technology, rich human resource, and an effective management system, we guarantee all products are manufactured strictly in accordance with GB, IEC, BS, NFC, ASTM, DIN standards, etc.

Beyond quality control, ZMS has been trying its best to offer a much higher standard of services rather than expected.

Technical Data:

Copper Conductor
Cable Type	Conductor	Insulation Thickness	Concentric Conductor	Outer Sheath Thickness	O.D of the cable
AWG	mm	mm	mm	mm	mm
3X8AWG	7/1.23	1.14	65/0.405	1.14	11.3x17.3
3X6AWG	7/1.55	1.14	65/0.511	1.14	13.2x20.0
3X4AWG	7/1.96	1.14	65/0.643	1.52	14.7x22.9
3X2AWG	7/2.47	1.14	65/0.823	1.52	16.6x26.3

Concentric Cable
