Submarine Optical Fibre (Fiber) Cable, also known as submarine communication cable.
It is a wire wrapped with insulating material, laid on the seabed, and used to set up telecommunications transmission between countries.
The submarine optical cable system is mainly used to connect fiber optic cable and the Internet, it is divided into two major parts of shoring equipment and underwater equipment, the submarine optical cable is the most important and vulnerable part of the underwater equipment.
The laid submarine cables are generally available in medium voltage and high voltage submarine cable in terms of voltage. The cable DC voltage is rated at 200kV.
These DC submarine power cables are used for power transmission to offshore islands, oil platforms, or to cross rivers and lakes.
ZMS Cable design is based on the major national or international standards e.g. VDE, IEC, and ICEA, or according to customers' design and standards.
IEC 60228; IEC 60502; IEC 60840; IEC 62067

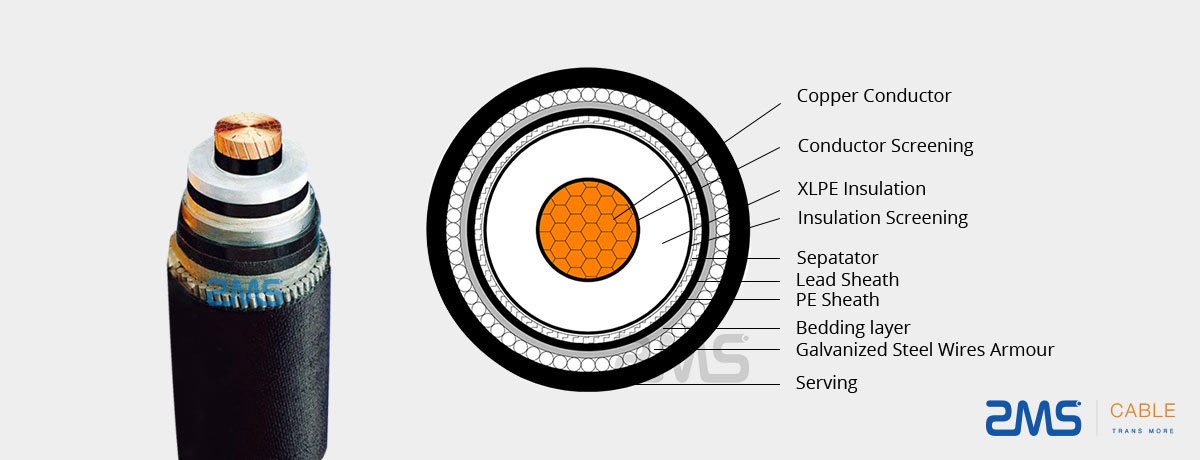

1. Conductor: Copper conductor, water blocked.
2. Conductor Screening: Extruded semi-conductive compound.
3. Insulation: XLPE.
4. Insulation Screening: Extruded semi-conductive compound.
5. Separator: Swelling tape.
6. Core Sheath1: Lead Sheath.
7. Core Sheath2: PE sheath.
8. Bedding: Bedding layer.
9. Armour: Galvanized steel wires filled with bitumen compound.
10. Serving: Polypropylene yarn.
127/220(245)KV
| Nominal Cross Section Area | Capacitance | Inductance | Current Rating |
|---|---|---|---|
| mm2 | μF/mm | mH/km | A |
| 500 | 0.14 | 1.42 | 5.8 |
| 630 | 0.16 | 1.4 | 6.4 |
| 800 | 0.17 | 1.37 | 6.9 |
| 1000 | 0.19 | 1.35 | 7.4 |
| 1200 | 0.2 | 1.33 | 7.8 |
| 1400 | 0.21 | 1.32 | 8.2 |
| 1600 | 0.22 | 1.31 | 8.6 |
160/275(300)KV
| Nominal Cross Section Area | Capacitance | Inductance | Current Rating |
|---|---|---|---|
| mm2 | μF/mm | mH/km | A |
| 500 | 0.14 | 1.42 | 6.8 |
| 630 | 0.16 | 1.4 | 7.7 |
| 800 | 0.17 | 1.37 | 8.3 |
| 1000 | 0.18 | 1.35 | 9 |
| 1200 | 0.19 | 1.33 | 9.5 |
| 1400 | 0.2 | 1.32 | 10 |
| 1600 | 0.21 | 1.31 | 10.4 |
200/345(362)KV
| Nominal Cross Section Area | Capacitance | Inductance | Current Rating |
|---|---|---|---|
| mm2 | μF/mm | mH/km | A |
| 630 | 0.14 | 1.4 | 8.8 |
| 800 | 0.15 | 1.37 | 9.7 |
| 1000 | 0.17 | 1.35 | 10.7 |
| 1200 | 0.18 | 1.33 | 11.1 |
| 1400 | 0.19 | 1.32 | 11.6 |
| 1600 | 0.2 | 1.31 | 12.1 |
230/400(420)KV
| Nominal Cross Section Area | Capacitance | Inductance | Current Rating |
|---|---|---|---|
| mm2 | μF/mm | mH/km | A |
| 630 | 0.13 | 1.4 | 9.6 |
| 800 | 0.15 | 1.37 | 10.7 |
| 1000 | 0.16 | 1.35 | 11.7 |
| 1200 | 0.18 | 1.33 | 12.9 |
| 1400 | 0.19 | 1.32 | 13.5 |
| 1600 | 0.19 | 1.31 | 14.1 |
Dimension and Weight
127/220(245)KV
| Nominal Cross Section Area | Nominal Conductor Diameter | Nominal Insulation Thickness | Nominal Diameter Over Insulation | Nomanal Lead Sheath Thickness | Nominal Overall Diameter | Weight |
|---|---|---|---|---|---|---|
| mm2 | mm | mm | mm | mm | mm | kg/m |
| 500 | 26.2 | 24 | 77.6 | 2.9 | 111 | 29.3 |
| 630 | 29.8 | 23 | 79.2 | 3 | 112.8 | 31.2 |
| 800 | 33.7 | 23 | 83.1 | 3.1 | 117.5 | 34.5 |
| 1000 | 37.9 | 23 | 87.3 | 3.1 | 121.9 | 37.7 |
| 1200 | 41.2 | 23 | 90.6 | 3.1 | 125.2 | 40.4 |
| 1400 | 44.4 | 23 | 93.8 | 3.1 | 128.6 | 43.2 |
| 1600 | 47.4 | 23 | 96.8 | 3.1 | 131.8 | 46 |
160/275(300)KV
| Nominal Cross Section Area | Nominal Conductor Diameter | Nominal Insulation Thickness | Nominal Diameter Over Insulation | Nomanal Lead Sheath Thickness | Nominal Overall Diameter | Weight |
|---|---|---|---|---|---|---|
| mm2 | mm | mm | mm | mm | mm | kg/m |
| 500 | 26.2 | 26 | 81.6 | 3 | 115.2 | 31.1 |
| 630 | 29.8 | 24 | 81.2 | 3 | 114.8 | 31.8 |
| 800 | 33.7 | 24 | 85.1 | 3.1 | 119.5 | 35.2 |
| 1000 | 37.9 | 24 | 89.3 | 3.1 | 123.9 | 38.4 |
| 1200 | 41.2 | 24 | 92.6 | 3.1 | 127.4 | 41.6 |
| 1400 | 44.4 | 24 | 95.8 | 3.1 | 130.6 | 44.4 |
| 1600 | 47.4 | 24 | 98.8 | 3.1 | 133.8 | 47.2 |
200/345(362)KV
| Nominal Cross Section Weight | Nominal Conductor Diameter | Nominal Insulation Thickness | Nominal Diameter Over Insulation | Nomanal Lead Sheath Thickness | Nominal Overall Diameter | Weight |
|---|---|---|---|---|---|---|
| mm2 | mm | mm | mm | mm | mm | kg/m |
| 630 | 29.8 | 28 | 89.2 | 3.1 | 123.4 | 35.2 |
| 800 | 33.7 | 27 | 91.1 | 3.1 | 125.9 | 37.5 |
| 1000 | 37.9 | 26 | 93.3 | 3.1 | 128.1 | 39.9 |
| 1200 | 41.2 | 25 | 94.6 | 3.1 | 129.4 | 42 |
| 1400 | 44.4 | 25 | 97.8 | 3.1 | 132.8 | 44.9 |
| 1600 | 47.4 | 25 | 100.8 | 3.1 | 135.8 | 47.7 |
230/400(420)KV
| Nominal Cross Section Area | Nominal Conductor Diameter | Nominal Insulation Thickness | Nominal Diameter Over Insulation | Nomanal Lead Sheath Thickness | Nominal Overall Diameter | Weight |
|---|---|---|---|---|---|---|
| mm2 | mm | mm | mm | mm | mm | kg/m |
| 630 | 29.8 | 32 | 98.2 | 3.1 | 132.8 | 38.8 |
| 800 | 33.7 | 30 | 98.1 | 3.1 | 133.1 | 40.2 |
| 1000 | 37.9 | 29 | 100.3 | 3.1 | 135.3 | 42.6 |
| 1200 | 41.2 | 27 | 99.6 | 3.1 | 134.6 | 44 |
| 1400 | 44.4 | 27 | 102.8 | 3.1 | 138 | 46.9 |
| 1600 | 47.4 | 27 | 105.8 | 3.1 | 141 | 49.7 |
