Application:

This is a kind of climate bearable XLPE and HDPE insulated aerial cable of copper core, aluminum core, or aluminum alloy core, suitable for overhead power lines of AC rated voltage Uo/U 10KV and below.

Standard:

IEC60502, NF C33-209, GB 12527-90 ASTM

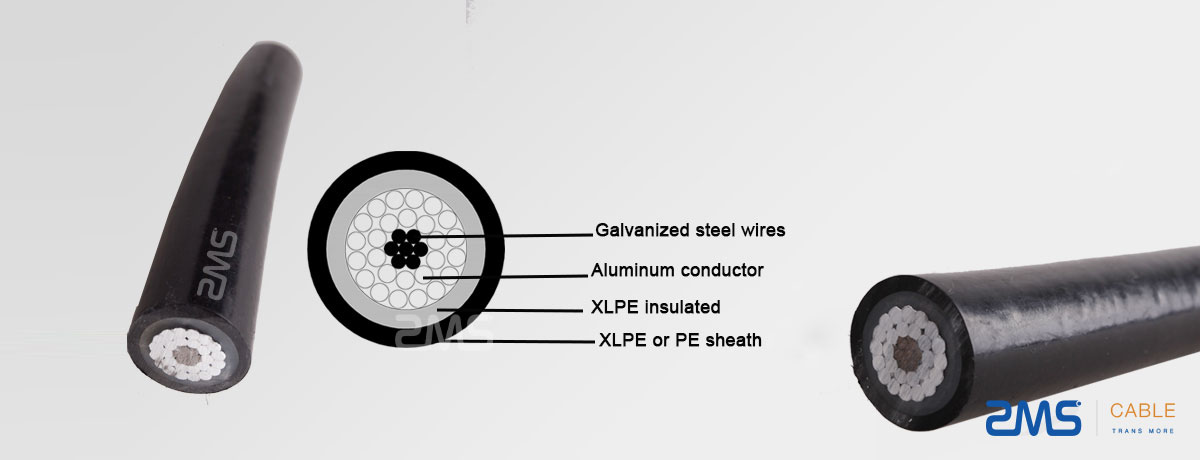

Construction:

1. Conductor: copper, aluminum, aluminum alloy;

2. Insulation: HDPE, XLPE

Technical parameters:

Code Number	Area	Number of wires	Diameter of wire	Diameter of conductor	Linear mass	Rated strenght	D.C. resistance
Code Number	mm2	Number of wires	mm	mm	Kg/km	kN	Ω/km
16	18.4	7	1.83	5.49	50.4	5.43	1.7896
25	28.8	7	2.29	6.87	78.7	8.49	1.1453
40	46.0	7	2.89	8.67	125.9	13.58	0.7158
63	72.5	7	3.36	10.80	198.3	21.39	0.4545
100	115.0	19	2.78	13.90	316.3	33.95	0.2877
125	144.0	19	3.10	15.50	395.4	42.44	0.2302
160	184.0	19	3.51	17.55	506.1	54.32	0.1798
200	230.0	19	3.93	19.65	632.7	67.91	0.1439
250	288.0	19	4.39	21.95	790.8	84.68	0.1151
315	363.0	37	3.53	24.71	998.9	106.95	0.0916
400	460.0	37	3.98	27.86	1268.4	135.81	0.0721
450	518.0	37	4.22	29.54	1426.9	152.79	0.0641
500	575.0	37	4.45	31.15	1585.5	169. 76	0.0577
560	645.0	61	3.67	33.03	1778.4	190.14	0.0516
630	725.0	61	3.89	35.01	2000.7	213.90	0.0458
