Cable n2xsy is used for electricity supply in low-voltage installation systems.
They are suitable for installation indoors and outdoors, in cable ducts, underground, in power and switching stations, local energy distributions, and industrial plants, where there is no risk of mechanical damage.

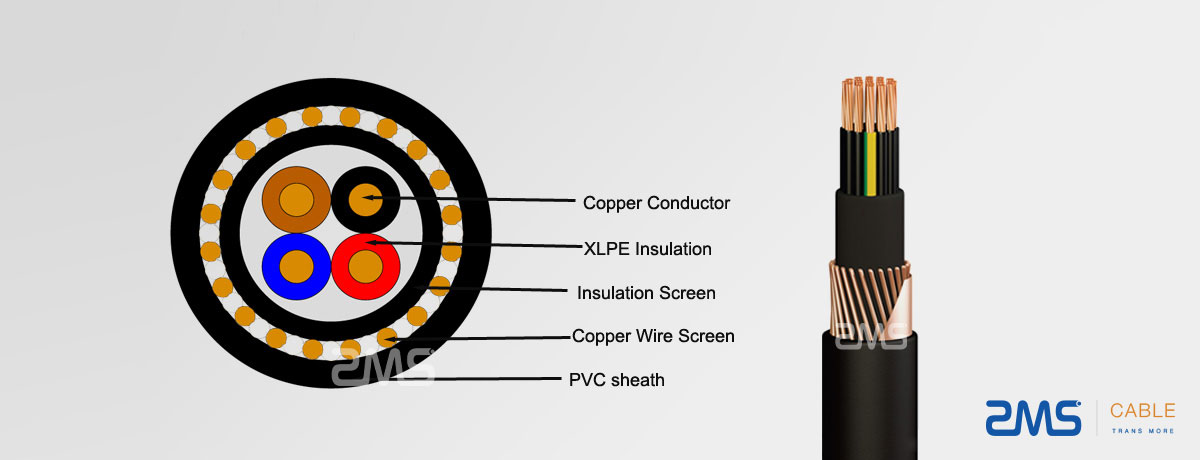

Conductor: Solid or stranded copper （1C, 2C, 3C, 4C, 5C, or Multi-core）
Insulation: Cross-linked polyethylene (XLPE) or Polyvinyl chloride (PVC)
Filler: Polypropylene filament with lapped binding tape
Binder: Binding tape
Inner Sheath: Polyvinyl chloride (PVC)
Sheath: Polyvinyl chloride (PVC)
Characteristics Voltage Rating: (UO/U) 600/1000V
Testing Voltage: 4000V
Fixed: -5°C to +70°C
Flexed: -30°C to +70°C
Short Circuited Temperature: +250oC
Insulation Resistance: 20 MΩ x km
This product complies with the EEC Regulation 73/23 (Low Voltage Regulation) CE
Conforms to CE/TUV/VDE standards
N: indicates German standard.
2X: cross-linked polyethylene insulation.
S: copper wire and reverse-wound copper tape shielding.
(F): longitudinal water barrier.
2Y: PE sheath.
1 Chemical resistance
2 Small bending radius
3 Flame retardant
4 No hazardous substances, RoHS compliant
Rated voltage: 6/10KV,12/20KV,18/30KV
Test voltage: 6/10kV up to 15 kV, 12/20kV up to 30 kV, 18/30kV up to 45 kV
Minimum bending radius: 15 x cable OD
Temperature range: -5℃ to +50℃
Flame retardant properties: PVC self-extinguishing and flame retardant
Abbreviations "re", "rm", "se", "sm".
r = round conductor shape
s = fan-shaped conductor shape
e = single conductor/conductor type 1 according to IEC 60228/VDE 0295
m = Multi-conductor / conductor type 2 according to IEC 60228/VDE 0295
ZMS Cable Group has a wide product scope, including Power cables up to 500kV, AAC, AAAC, ACSR conductors, ABC overhead cables, electric wires, control cables, instrument cables, telecommunications cables, and Stay wires.
With advanced manufacturing technology, rich human resource, and an effective management system, we guarantee all products are manufactured strictly in accordance with GB, IEC, BS, NFC, ASTM, DIN standards, etc.
Beyond quality control, ZMS has been trying its best to offer a much higher standard of services rather than expected.
If you don’t know how to choose the products you need or don’t find the cable type and size you need on this page, don’t worry. Contact us and send us your requirements, and we can help you choose the right cable. You can provide us with the following information: cable voltage, conductor material, insulation and sheath material, shield type, armor type, etc. Or you can provide us with cable installation environment, application requirements, etc. We will serve you wholeheartedly. ZMS Cable Supplier has a number of quality certifications: ISO 9000, ISO 9001, ISO14000, ISO14001, ISO18000, CE, IEC, BS, NFC, ASTM, DIN, etc.
ZMS has a wide range of cable and conductor products for you to choose from. We will provide caring services and professional project solutions for everyone who needs them.
ZMS provides free professional consulting services to provide you with one-stop project solution services and rapid product delivery solutions.
While ZMS provides high-quality cables, we also provide good delivery solutions. While ensuring the safe delivery of products, we provide the best packaging and transportation solutions, greatly reducing customers’ transportation costs.
| Wire Gage | NO.X Cross Section Area(mm2) | Insulation Thickness(mm) | Jacket Thickness(mm) | Nominal Outside Diameter(mm) | Nominal Cable Weight(kg/km) |
|---|---|---|---|---|---|
| 16 | 1x1.5 | 0.7 | 1.8 | 9.7 | 114 |
| 14 | 1x2.5 | 0.7 | 1.8 | 10.2 | 135 |
| 12 | 1x4 | 0.7 | 1.8 | 10.8 | 170 |
| 10 | 1x6 | 0.7 | 1.8 | 11.3 | 214 |
| 8 | 1x10 | 0.7 | 1.8 | 12.4 | 304 |
| 6 | 1x16 | 0.7 | 1.8 | 13.8 | 431 |
| 4 | 1x25 | 0.9 | 1.8 | 15.5 | 548 |
| 2 | 1x35 | 0.9 | 1.8 | 16.6 | 650 |
| 1 | 1x50 | 1 | 1.8 | 18.8 | 892 |
| 2/0 | 1x70 | 1.1 | 1.8 | 21.0 | 1207 |
| 3/0 | 1x95 | 1.1 | 1.8 | 23.5 | 1600 |
| 4/0 | 1x120 | 1.2 | 1.8 | 26.0 | 2045 |
| 300mcm | 1x150 | 1.4 | 1.8 | 28.0 | 2320 |
| 350mcm | 1x185 | 1.6 | 1.8 | 30.5 | 2942 |
| 500mcm | 1x240 | 1.7 | 1.9 | 34.0 | 3761 |
| 750mcm | 1x300 | 1.8 | 2.1 | 37.0 | 4591 |
| - | 1x400 | 2 | 2 | 41.5 | 5830 |
| - | 1x500 | 2.2 | 2.3 | 46.0 | 7450 |
| - | 1x630 | 2.4 | 2.5 | 52.0 | 9561 |
| - | 1x800 | 0.7 | 1.8 | 58.0 | 12290 |
