H01N2-D is a flexible, harmonized, rubber jacketed and normative arc-welding cable.

This cable is designed specifically for the transmission of high currents from electric welding machines to the welding tool on automatically or manually operated line and spot welding machines.

H01N2-D rubber cable is also suitable for most assembly lines and conveyor systems in the automobile, ship building, and tool making industries. Even under the influence of ozone, light, oxygen, protective gases and oils, H01N2-D cables remain to retain their flexibility. The robust jacket and the construction of the cable aids in the resistance to both hot and cold temperatures as well as making it flame retardant and making it suitable for use outdoors in dry or damp condition.

Application range

· Application standard for H01N2-D: HD 516/VDE 0298-300

· For transmitting high currents from the electric welding device to the welding tool

· Use the welding cable only under consideration of HD 516/VDE 0298-300

· Can be used in dry or damp rooms

Benefits

· Type-compliant versions -certified with “” testing and certification mark for accelerated granting of

· approvals if final application of cable is within the European CENELEC area

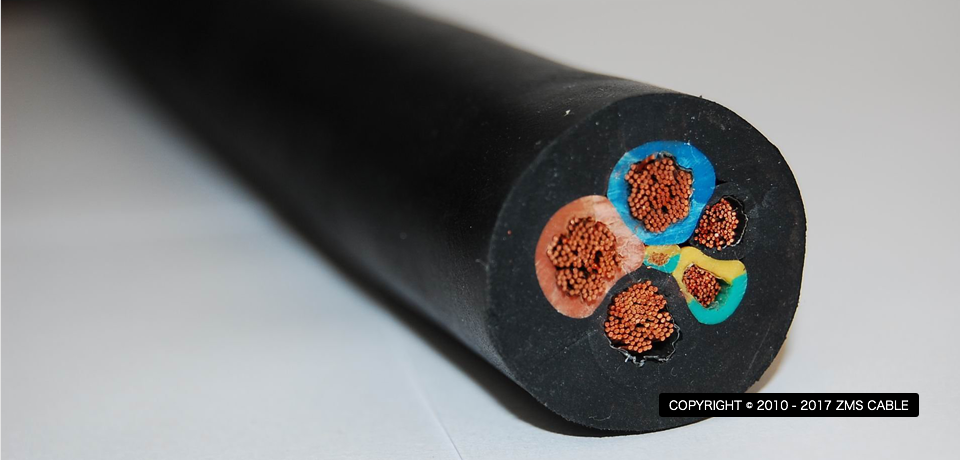

Design

· Bare copper wire according to HAR

· Stranding approximately corresponds to class 6 up to 95 mm2, and from 120 mm2 approximately to class 5 acc.to VDE 0295

· Separator made of synthetic film or paper

· Outer sheath: rubber compound, type EM5

Approvals

· Has replaced the previous VDE type NSLFF?U

Product features

· Flame-retardant according to IEC 60332-1-2

· Maximum recommended ambient temperature during storage according to HD 516/VDE 0298-300: +40 °C
