Electrical Wire, flex cable cord, electric line Wires are the conductor of the conduction current.

Carrier conduction power usage.

The distinction between wire and cable

"Wire" and "cable" in the concept and there is no strict boundaries.

Narrow sense, is divided into "wire" and "cable", collectively referred to as "cable" in the broad sense.

Usually considered:

(1) a single called "line"; Dorgan called "cable".

(3) simple structure called the "line"; complex structure called the "cable".

But with the expansion of the scope, the many varieties of "line lead", "cable wired.

There is no need to strictly differentiated.

Daily habits, household wire cloth called a wire, power cable for short cable.

Wire and cable including bare wires, winding wires, power cables, communication cables and fiber optic cable for electrical equipment.

The composition of the wire and cable

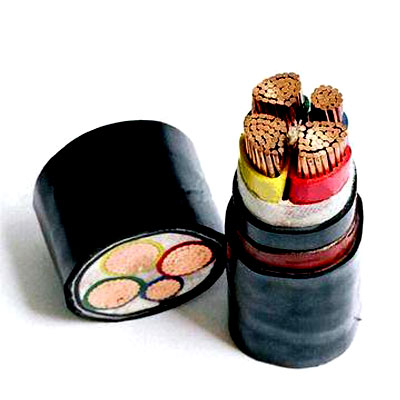

Wire and cable conductor, insulation, shielding and protective layer composed of four parts.

(1) Conductor is the conductive part of the wire and cable used to transport electricity, is the main part of the wire and cable.

Wire and cable named

Complete the naming of the wire and cable is usually more complex , so people sometimes use a simple name (usually the name of a class ) combined with the model specification instead of the full name , such as " low voltage cable on behalf of all 0.6/1kV grade plastic insulation class power cable.

More perfect form spectrum of the electric wire and cable , we can say , just write the specifications of the standard model of the wire and cable.

You can clear a specific product, but it is the full name is what ?

Wire and cable products named the following principles:

Included in the product name

(3) important features or additional features of the basic named according to the above order, and sometimes in order to emphasize the important additional features,the characteristics wrote before the description of the front or the corresponding structure.

Structure described

In the order of the product structure described by the principles from the inside out: the conductor -> insulation - inside the sheath - layer of protection -> armored type.
