APPLICATIONS

Airport Lighting Cable is primarily used for series lighting circuits for runways, control systems, and other multi-purpose installations. It can be used for direct burial, conduit, or raceway. These cables are capable of operating continuously at a conductor temperature not in excess of 90°C for normal operation, 130°C for emergency overload conditions, and 250°C for short circuit conditions.

Voltage rating for conductors is 600 volts and 5,000 volts.

SPECIFICATIONS

Airport Lighting Cable meets or exceeds FAA Specification L-824, AC150/5345-7E, and ICEAS-66-524

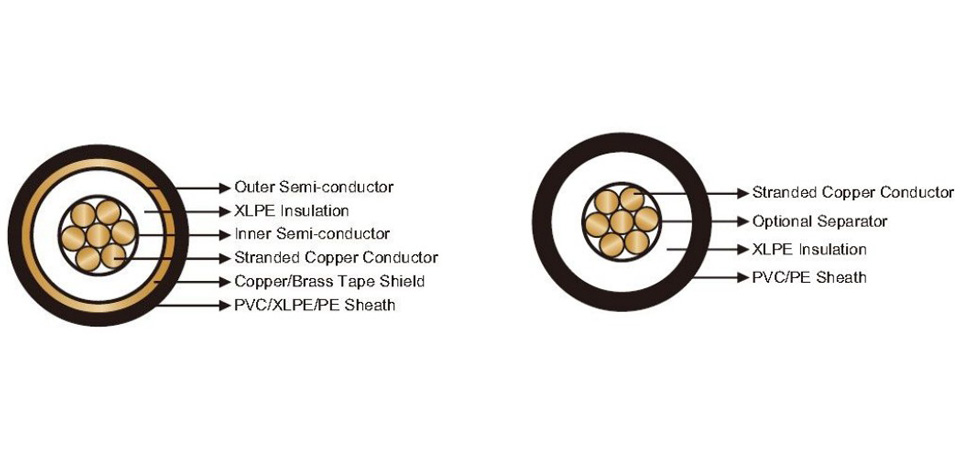

CONSTRUCTION

Airport Lighting Cable conductors are annealed (soft) copper, compressed 7 strand. 600V cable insulation is an abrasion,moisture, and heat resistant black cross-linked polyethylene. 5kV cable has an extruded semi-conducting cross-linked conductor shield with an abrasion, moisture, heat, and 20-mil track resistant cross-linked polyethylene insulation.
600 VOLTS

RECOMMENDED SAMPLE SPECIFICATIONS:

Cable shall be FAA L-824, Type C, suitable for operation at 600 volts or 5kV in wet or dry locations. Conductors shall be annealed (soft) copper, compressed 7 strand. 600V cable insulation shall be abrasion, moisture, and heat resistant black XLPE insulation (XLPE INSULATED CABLE ).

5kV cable shall have a 20 mil extruded cross-linked polyethylene conductor shield. 5kV cable shall have an abrasion, moisture, heat, and track resistant cross-linked polyethylene. Cable shall be printed with conductor size, manufacturer, voltage, and FAA-L-824, Type C.

In china domestic market ,it does not have uniform standard like XLPE cable ,ACSR ,steel tape armored power cable, PVC wire etc . Factory used to copy abroad and use the copper tape xlpe insulated cable production art to make it ,which will reduce much cost .
