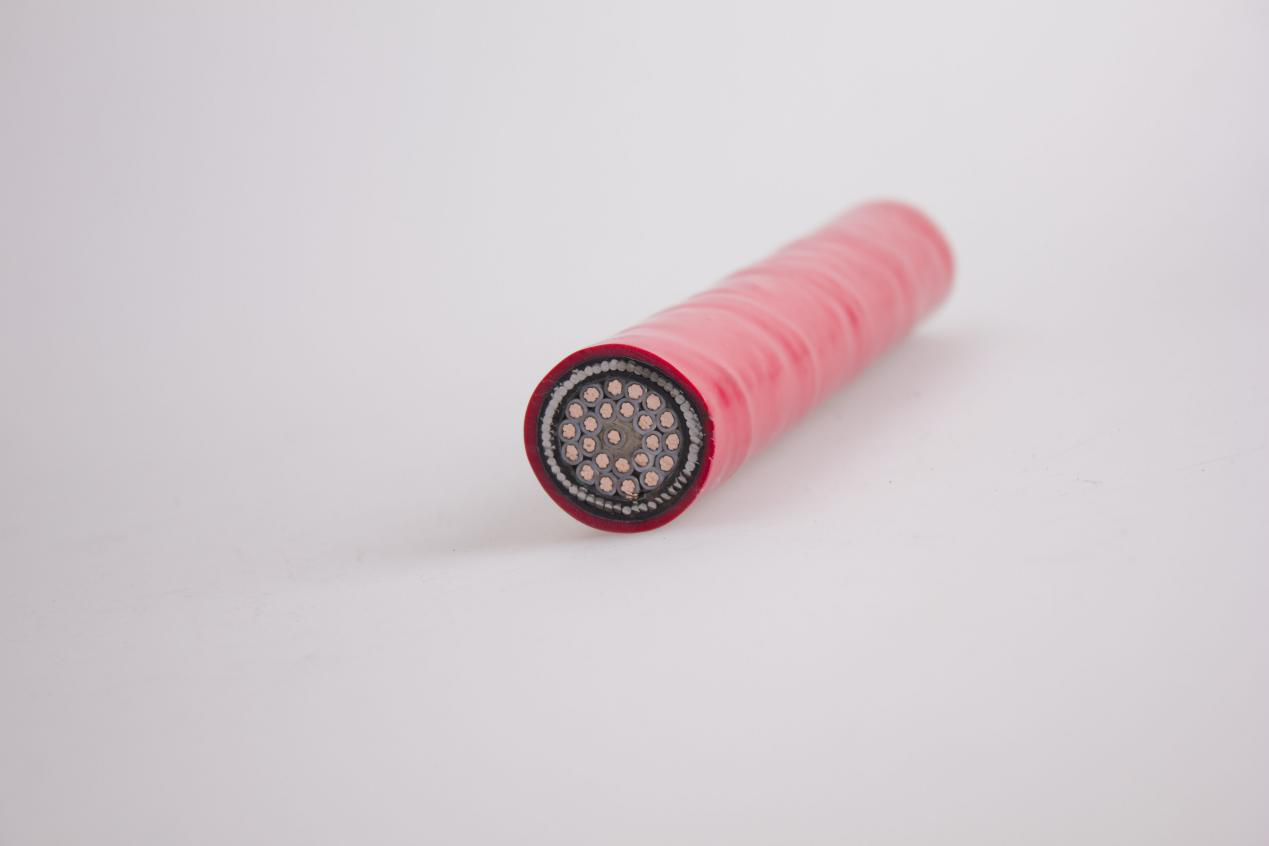

PVC control cable model and name:

KVV—copper core PVC insulated, PVC sheathed control cable.

KVVP3—Copper core PVC insulated, PVC sheathed aluminum foil shielded control cable.

KVV 22 — Copper core PVC insulated, PVC sheathed steel tape armored control cable.

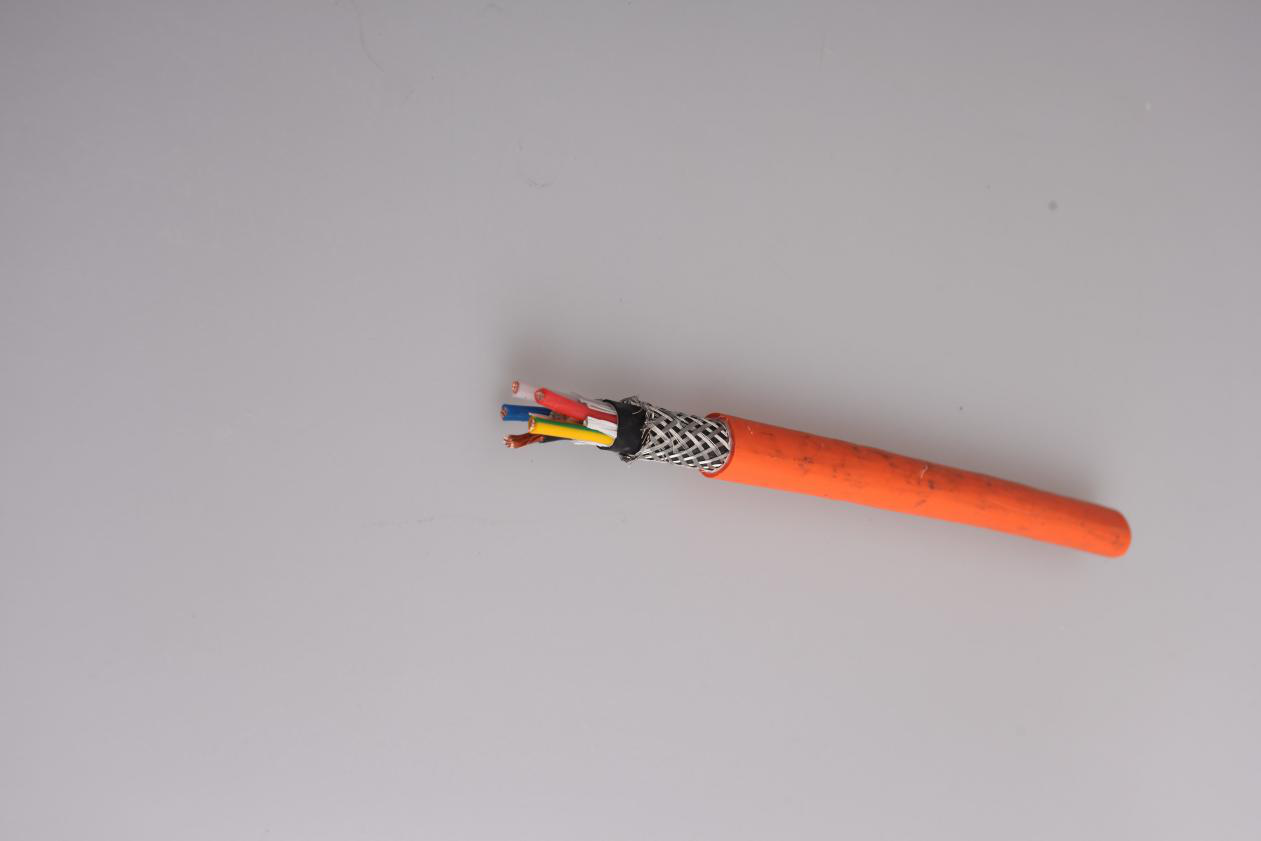

KVVRP—Copper core PVC insulated, PVC sheathed braided shield control flexible cable.

KVVP - copper core PVC insulated, PVC braided shielded control cable.

KVVR - copper core PVC insulated, PVC sheathed control flexible cable.

Polyvinyl chloride control cable use characteristics:

Rated voltage: U0/U is 450/750V.

The long-term working temperature of the conductor core is 70 °C and 95 °C, and the cable laying temperature is not lower than 0 °C.

The recommended bending diameter of the cable is as follows:

Cables without armor shall not be less than 6 times the outer diameter of the cable;

Armored or copper tape shielded cable shall not be less than 12 times the outer diameter of the cable;

Shield the flexible cable to no less than 6 times the outer diameter of the cable.

Control cable refers to equipment meter power supply / signal control

Representative model: KVV/KYJV/ and other instrument lines, etc.

Control cable product description:

Executive standard: GB/T 9330-2008. Flame-retardant cables shall also comply with the technical conditions of the IEC337-8 standard.

Model Product Name Voltage V Core  Number Cross Section mm2

Main scope of application

KVV copper-clad core PVC insulated and sheathed kvv cable 450/750 4-37 0.75-10 Laid indoors, cable trenches, pipes, etc.

KVV22 copper core PVC insulated PVC sheathed steel tape armored kvv22 cable 450/750 4-37 0.75-10 Laminated indoors, cable trenches, pipelines buried directly and other fixed occasions capable of withstanding large mechanical external forces

KVVP flame-retardant copper core PVC insulated and sheathed kvvp cable 450/750 4-37 0.75-10 Laid indoors, cable trenches, pipes, etc.

KVVR copper core PVC insulated PVC sheathed control flexible cable 450/750 4-37 0.75-10 Laid indoors, with moving requirements

KVVRP copper core PVC insulated and sheathed braided shielded control flexible cable 450/750 4-37 0.75-10 Laminated indoors with moving shielding requirements

ZRKVV flame-retardant copper core PVC insulated and sheathed zrkvv cable 450/750 4-37 0.75-10 Laminated indoors, cable trenches, pipes, etc.

ZRKVV22 copper core PVC insulated PVC sheathed braided steel tape armored zrkvv22 cable 450/750 4-37 0.75-10 Laid indoors, cable trenches, pipelines, etc. can withstand large mechanical external forces and have flame retardant requirements Fixed occasion
